- Medium-duty foot switch with highly durable die-cast housing and powder-painted finish.
- User connects their own cable inside the foot switch; cable strain relief included.
- Maintained action - Press once to turn on, press again to turn off.
- 20 A, 125 VAC; 10 A, 250 VAC; 1.5 HP, 125/250 VAC; SPST
- Made in USA. Certified to UL and CSA standards.

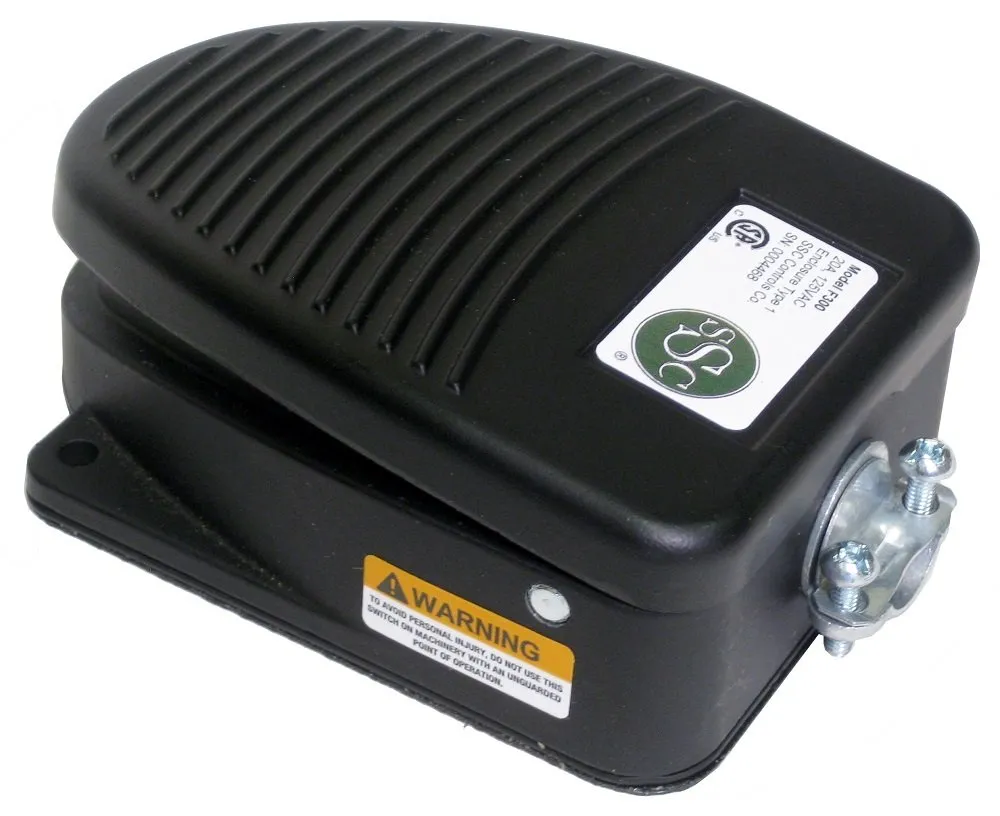

The F300 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and do-it-yourself wiring connection. You will have to attach your own cable to this foot switch. Features a 20-amp at 125 VAC (10-amp at 250 VAC) rated switch. This is a maintained foot switch which actuates like a ball-point pen: press pedal once to turn on, press again to turn off (you can remove your foot after turning it on and it will stay on). You will have to add a cable to wire this to your device using the two short leads coming off the switch and the ground screw location. Consult an electrician for proper wiring advice if needed (or see F300-1501 for the 3-pronged piggyback plug version that you can plug into the wall outlet). Great for any application where you already have the cable. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Size: 4.8" L x 3.5" W x 1.7" H; 2.1 pounds. Cross reference: Clipper 632-DA. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 4.8 x 3.5 x 1.7 inches; 2.2 Pounds
- Date First Available : November 10, 2015
- Manufacturer : SSC Controls
- Country of Origin : USA
