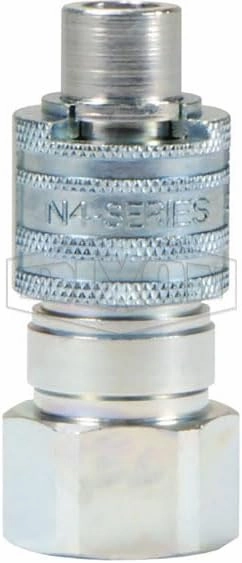

Dixon, N4F6, N-Series 3/4" NPTF DQC Bowes Interchange Female Steel Plug

Specifications

• Rated pressure for connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,000 PSI (755 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Phosphor Bronze retaining ring and spring maximize corrosion resistance and extend service life
• Steel componentry is plated using ROHS Compliant Trivalent Chrome

Compatibility & Interchange Data

• Bowes Interchange Bayonet Style
• Interchangeable with Bowes 51000-Series, National Series 'B', Dixon Dixlock, MacDonald Quick-Action

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
